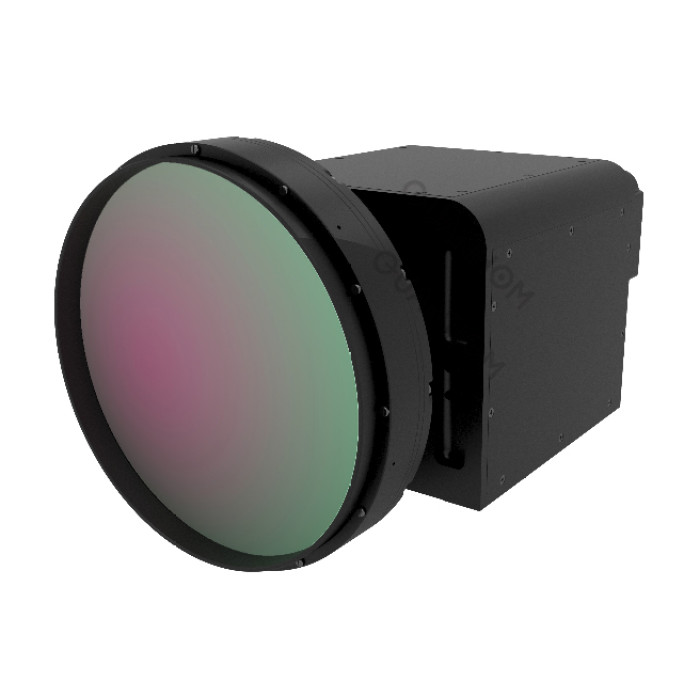

MWIR Continuous Zoom Lens 32-800mm f/4.0
| Categories | Medium Wave Infrared (MWIR) Lens |
|---|---|
| Brand | Quanhom Optronics |
| Model | GMZ80040UA6415 |
| MWIR Lens | 32-800mm f/4.0 |
| Applications | Security and Surveillance |
| Mechanical Interface | Thread |
| Update Time | Dec 31,2024 |
Detail Information
- Specifications
- Download file
- FAQ
- Video
- Applications
Specifications
|
HFOV
|
160x120
|
320x240
|
336x256 | 384x288 | 640x480 | 640x512 | 1024x768 |
1280x1024
|
15μm | / | 17.79°-0.69° | / | / |
Optical |
|||
|
Focal Length[mm]
|
32-800
|
||
|
F/#
|
4.0
|
||
Wave Length | 3.7-4.8μm | ||
Focus Range | 50m-Infinity | ||
Interface and Function |
|||
|
|
||
|
Shutter Correction
|
|
||
Optical Axis Toierance | ≤4Pixel | ||
Background Correction | Yes | ||
Polarity Control | Black Hot/White Hot | ||
Digital Zoom | x2/x4 | ||
Cross Display | On/Off | ||
Cross Location/Gain/Brightness/Enhancement | Adjustable | ||
Image Flip | Vertical/Horizontal | ||
Physical Parameter |
|||
|
Weight
|
≤8.9kg
|
||
Dimensions | 216mmx217mmx318mm | ||
Environmental |
|||
|
Operating Temperature
|
-40℃ to +60℃
|
||
Storage Temperature | -55℃ to +65℃ | ||
|
External Coating
|
AR
|
||
Sealing | IP67 | ||
Download document
|
file name
|
type |
download
|
||
PDF |
|
|||
FAQ
What is the difference between the GMC450XXUA and the longwave lens ratio?
1. This lens belongs to the shortwave lens.
2. The lens has a large focal length, which is convenient for observing targets in distant dramas.
3. The lens comes with Dewar refrigeration equipment and movement, which can better solve the influence of ambient temperature changes when the equipment is running.
4. The optical path of this lens is U-shaped optical path, and a larger focal length can be achieved with a shorter length.
APPLICATIONS
Airborne
Maritime & Naval Surveillance
Security & Surveillance
