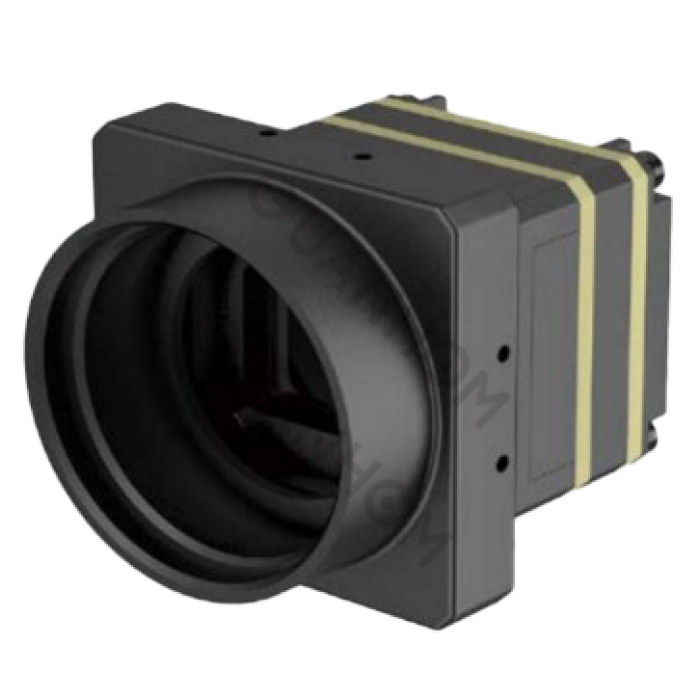

Mini Infrared Thermal Camera Module丨384*288 12μm
| Categories | LWIR Thermal Camera Module |
|---|---|
| Brand | Quanhom Optronics |
| Model | ITH3812Mini |
| Detector Type | Uncooled focal plane |
| Pixel Pitch | 12μm |
| Resolution | 384x288 |
| Size | 24x 24x 35mm |
| Update Time | Dec 21,2024 |
Detail Information
- Specifications
- Download file
- FAQ
- Video
- Applications
Specifications
Detctor Parameters |
|||
Detector Type | Uncooled | ||
|
Resolution
|
384*288
|
||
|
Pixel Pitch
|
12μm
|
||
|
Wavelength
|
8-14μm
|
||
Frame Rate | 50Hz | ||
NETD | < 35mk( @25℃, F#=1.0) | ||
Weight | ≤22g | ||
Operating Temperature | -40℃ to +70℃ | ||
Storage Temperature | -45℃ to +85℃ | ||
Operating Humidity | < 90% RH | ||
Image Parameters |
|||
|
Background correction
|
||
|
|
||
|
Brightness/ Contrast adjustment
|
|
||
Pseudo Colour Palette | Black hot, White-hot, Red hot, Fusion | ||
AGC model | Automatic | ||
DPC | √ | ||
DDE | √ | ||
3D DNR | √ | ||
Digital Zoom | x1, x2, x4, x8 | ||
Digital Video Output | 8-bit BT.656 / 14-bit RAW + YUV (ITH3812Mini-D) | ||
Analog Video Output | CVBS (ITH3812Mini-S) | ||
Boot Time | < 5S | ||
Interface |
|||
|
Communication interface
|
UART interface
|
||
OLED driver | 0.39" OLED 1024x768 ( ITH3812Mini-S) | ||
Battery interface | Support( spare) | ||
Others |
|||
|
Power
|
DC2.5V-DC5.5V
|
||
|
Power consumption
|
< 0.8W
|
||
|
Vibration shock grade
|
750g/ 1ms
|
||
Size | 24x 24x 35 mm | ||
Download document
|
file name
|
type |
download
|
||
|
Infrared Thermal Camera Module丨ITH3812Mini 384*288 12μm
|
PDF |
|
||
FAQ
- What is the difference between ITH3812Mini and other Infrared Thermal Camera module?
1. ITH3812Mini supports OLED driver.
2. It supports external keyboard.
3. It supports menu options.
4. Have no auto focus function.
- What are the main application scenarios of this thermal Image Core? Which lenses can be matched?
1. The Infrared thermal imaging camera of ITH3812Mini mainly used for outdoor observation machine, UAV, etc.
2. Many models of lenses can match this module, for example athermalized infrared lenses, manual infrared lenses.
